DFC Dongfeng Commercial Vehicle Tianlong KL Comfort Edition 340 HP 6X2 9.6m Van
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 6X2
- Wheelbase:
- 1995+5450mm
- Box length level:
- 9.6 meters
- engine:
- Dongfeng DDi75E340-60
- Gearbox:
- Fast 9JS135TA
- Rear axle speed ratio:
- 3.909
- Body length:
- 12 meters

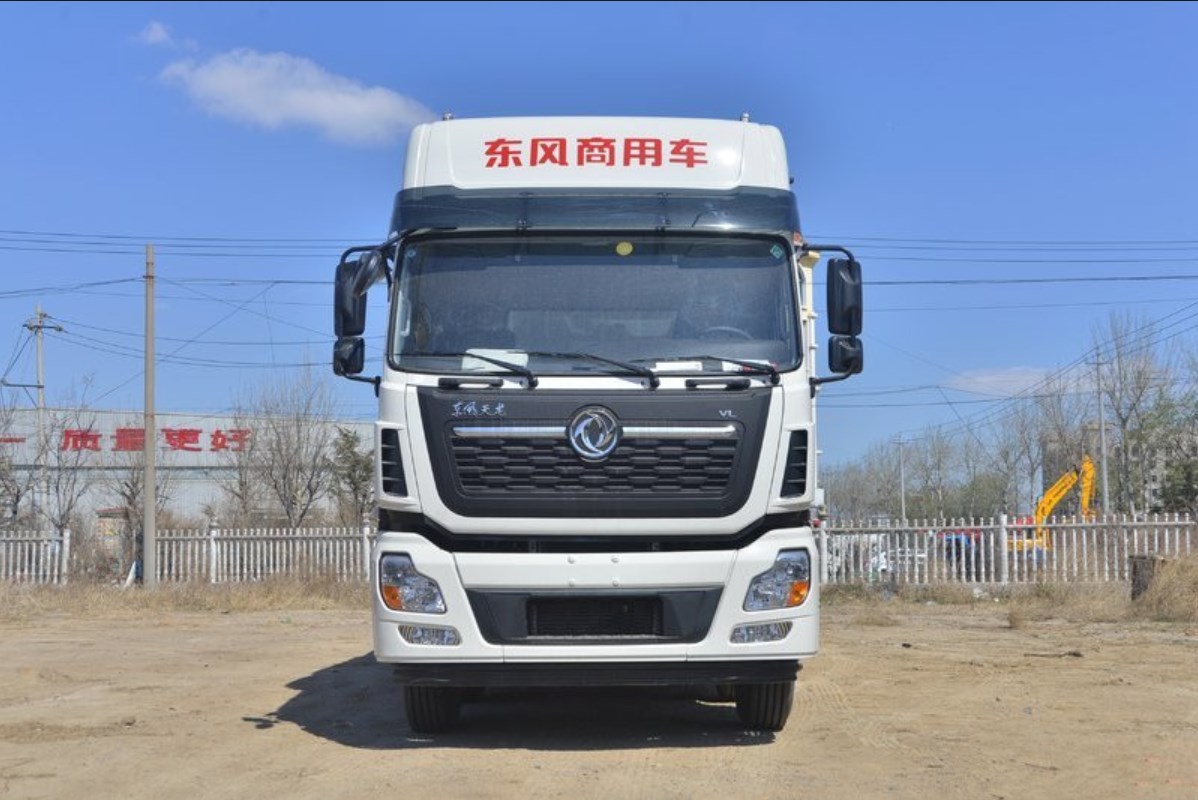

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 6X2
- Wheelbase
- 1995+5450mm
- Box length level
- 9.6 meters
- engine
- Dongfeng DDi75E340-60
- Gearbox
- Fast 9JS135TA
- Rear axle speed ratio
- 3.909
- Body length
- 12 meters
- Body width
- 2.55 meters
- Body height
- 3.99 meters
- Front track
- 2010/2010mm
- Rear wheelbase
- 1860mm
- Vehicle weight
- 11.1 tons
- Rated load
- 13.77 tons
- Total mass
- 25 tons
- Maximum speed
- 89KM/h
- Origin
- Hubei Shiyan
- Tonnage level
- heavy duty truck
- Approach angle
- 13 degrees
- Departure angle
- 10 degrees
- Market segments
- Transportation of agricultural and sideline products, LTL transportation
- Front suspension/rear suspension
- 1.48/3.075 meters
- Version
- Comfort version
Engine parameters
- engine model
- Dongfeng DDi75E340-60
- Engine brand
- Dongfeng
- Common name of engine
- Dongfeng DDi75
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 7.5L
- Emission Standards
- National VI
- Maximum output power
- 250kw
- Maximum horsepower
- 340 HP
Gearbox parameters
- Gearbox model
- Fast 9JS135TA
- Shifting method
- Manual
- Forward gear
- 9 gears
- Number of reverse gears
- 1
Chassis parameters
- Front axle description
- 5T
- Allowable load on front axle
- 7000/7000KG
- Frame size
- 300×80×8mm
- Rear axle description
- 10T
- Allowable load on rear axle
- 11000KG
- Speed ratio
- 3.909
- Number of spring leaves
- 3/3/9+3
- Maintenance-free wheel end
- Optional
- Tire specifications
- 295/80R22.5 18PR
- Number of tires
- 8
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
- Container form
- Van type
- Carton length
- 9.6 meters
- Cargo box width
- 2.45 meters
- Cargo box height
- 2.68 meters
