DFC Dongfeng Commercial Vehicles Tianjin KR Star Edition 260 HP 4X2 9.8m Wing Opening Van Truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 4X2
- Wheelbase:
- 7150mm
- Box length level:
- 9.8 meters
- engine:
- Dongfeng Cummins B6.2NS6B260
- Gearbox:
- 8 speed gearbox
- Body length:
- 12 meters
- Body width:
- 2.55 meters

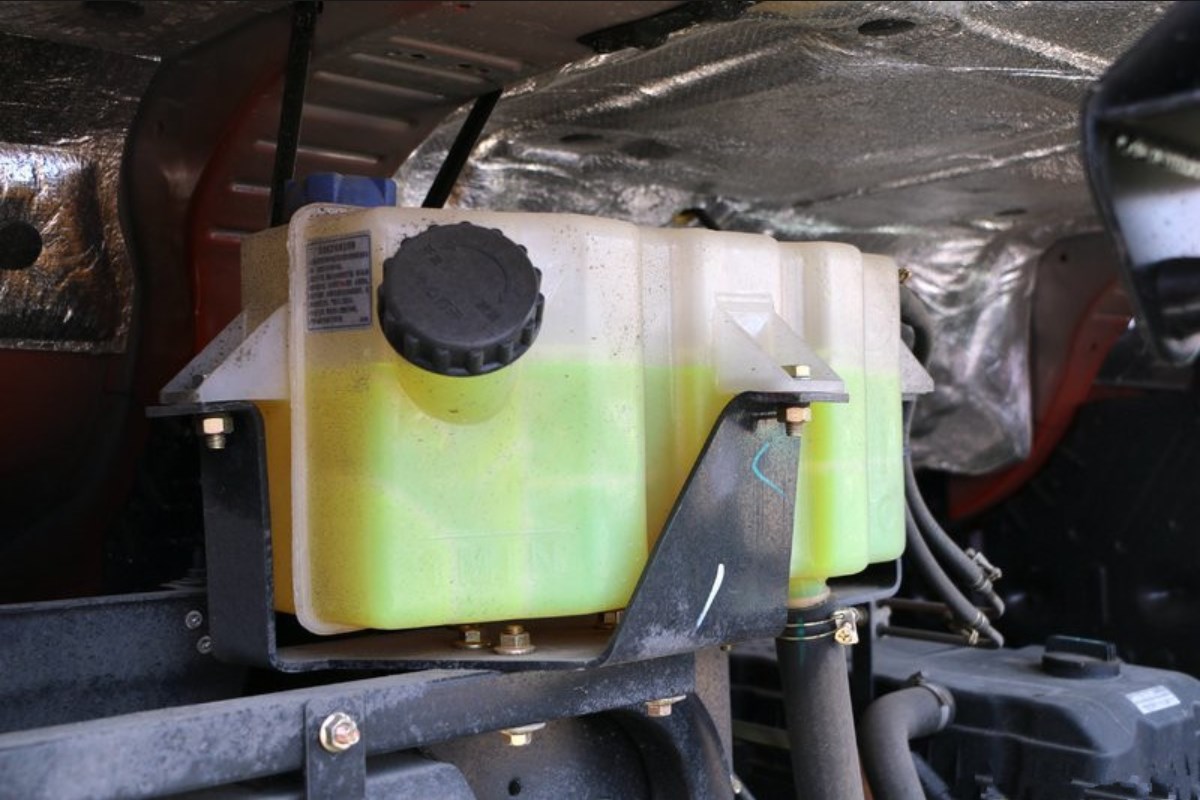

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 4X2
- Wheelbase
- 7150mm
- Box length level
- 9.8 meters
- engine
- Dongfeng Cummins B6.2NS6B260
- Gearbox
- 8 speed gearbox
- Body length
- 12 meters
- Body width
- 2.55 meters
- Body height
- 3.9 meters
- Front track
- 1915mm
- Rear wheelbase
- 1846mm
- Vehicle weight
- 9.2 tons
- Rated load
- 8.605 tons
- Total mass
- 18 tons
- Maximum speed
- 89KM/h
- Origin
- Hubei Shiyan
- Tonnage level
- medium card
- Approach angle
- 16 degrees
- Departure angle
- 9 degrees
- Front suspension/rear suspension
- 1.4/3.3 meters
- Version
- Star Edition
Engine parameters
- engine model
- Dongfeng Cummins B6.2NS6B260
- Engine brand
- Dongfeng Cummins
- Common name of engine
- Dongkang 6.2L
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 6.2L
- Emission Standards
- National VI
- Maximum output power
- 191kw
- Maximum horsepower
- 260 HP
- Maximum torque
- 1020N·m
- Maximum torque speed
- 1300-1700RPM
- Rated speed
- 2300RPM
Gearbox parameters
- Gearbox model
- 8 speed gearbox
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Allowable load on front axle
- 6500KG
- Allowable load on rear axle
- 11500KG
- Number of spring leaves
- 8/10+8
- Tire specifications
- 275/80R22.5 18PR
- Number of tires
- 6
- Container form
- wingspan
- Carton length
- 9.8 meters
- Cargo box width
- 2.45 meters
- Cargo box height
- 2.6 meters
