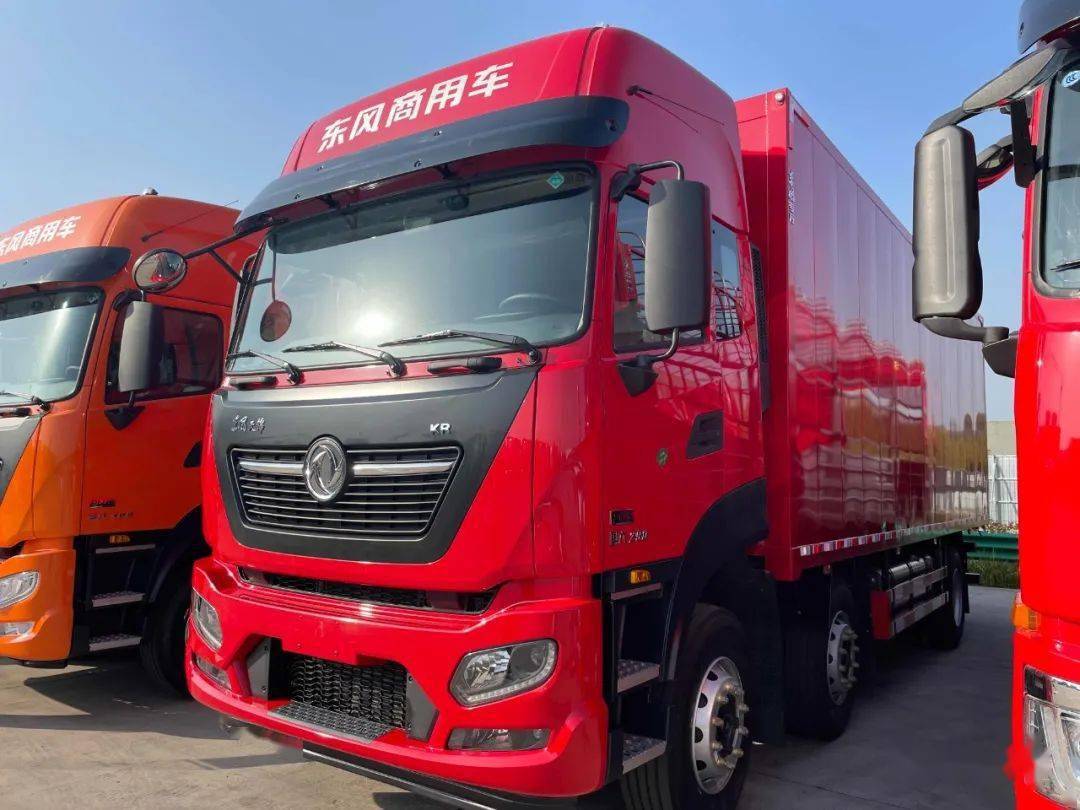

DFC Dongfeng Commercial Vehicles Tianlong KL heavy truck comfort version 465 horsepower 8X4 8.6m box truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 8X4
- Wheelbase:
- 2050+4000+1350mm
- Box length level:
- 8.6 meters
- engine:
- Dongfeng DDi11E465-60
- Gearbox:
- Dongfeng DT1422 OD
- Rear axle speed ratio:
- 3.64
- Body length:
- 11 meters

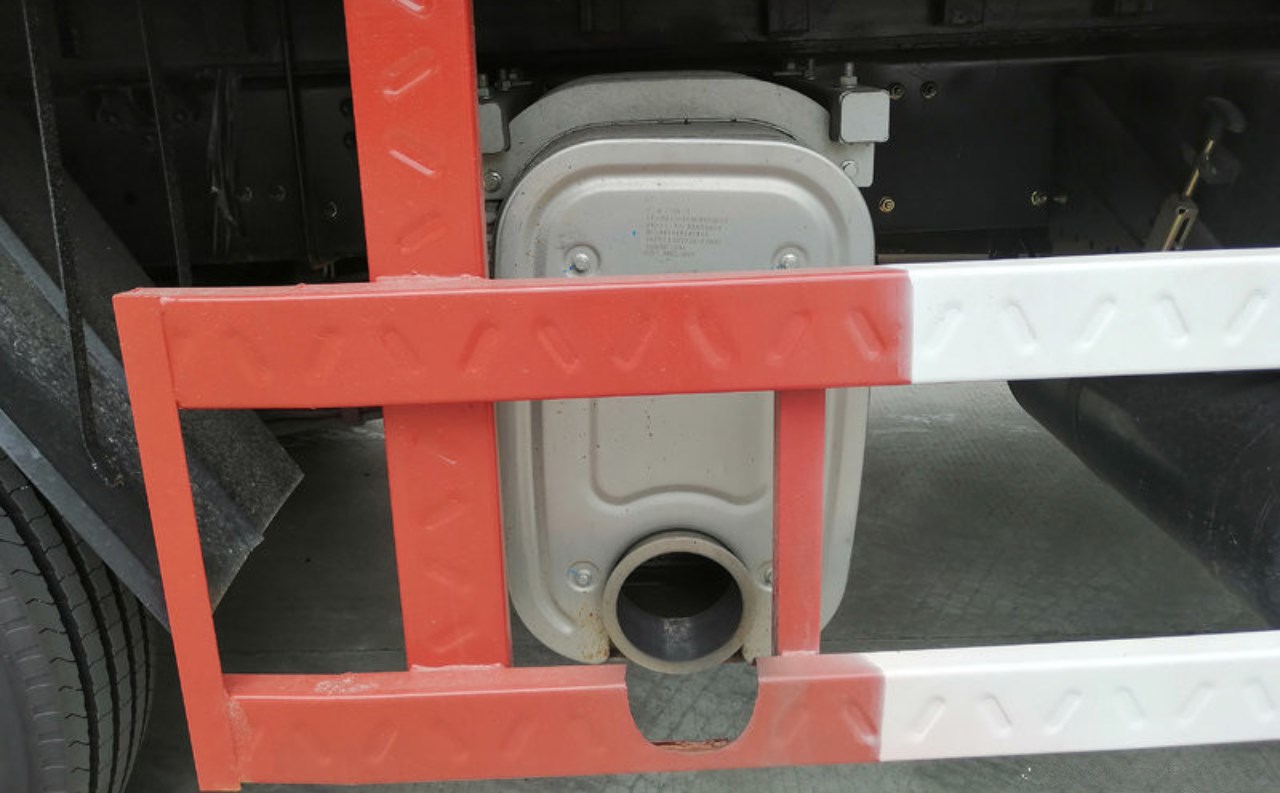

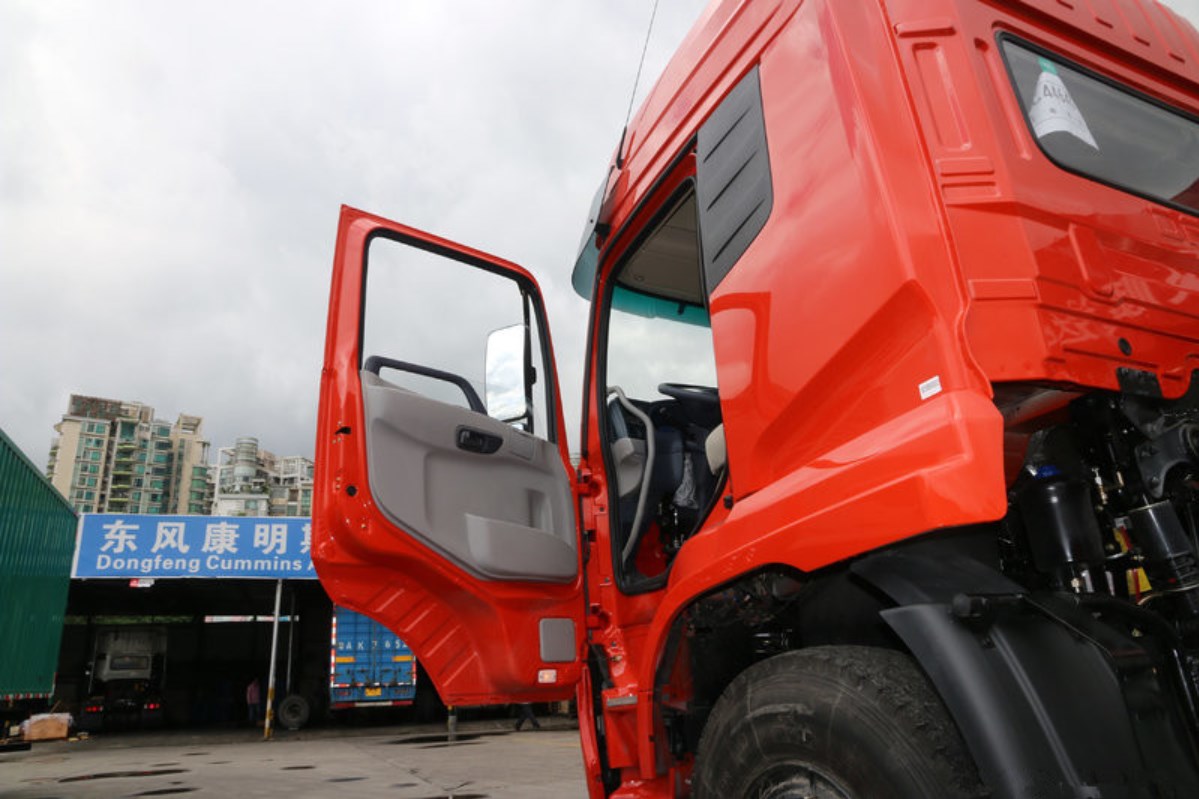

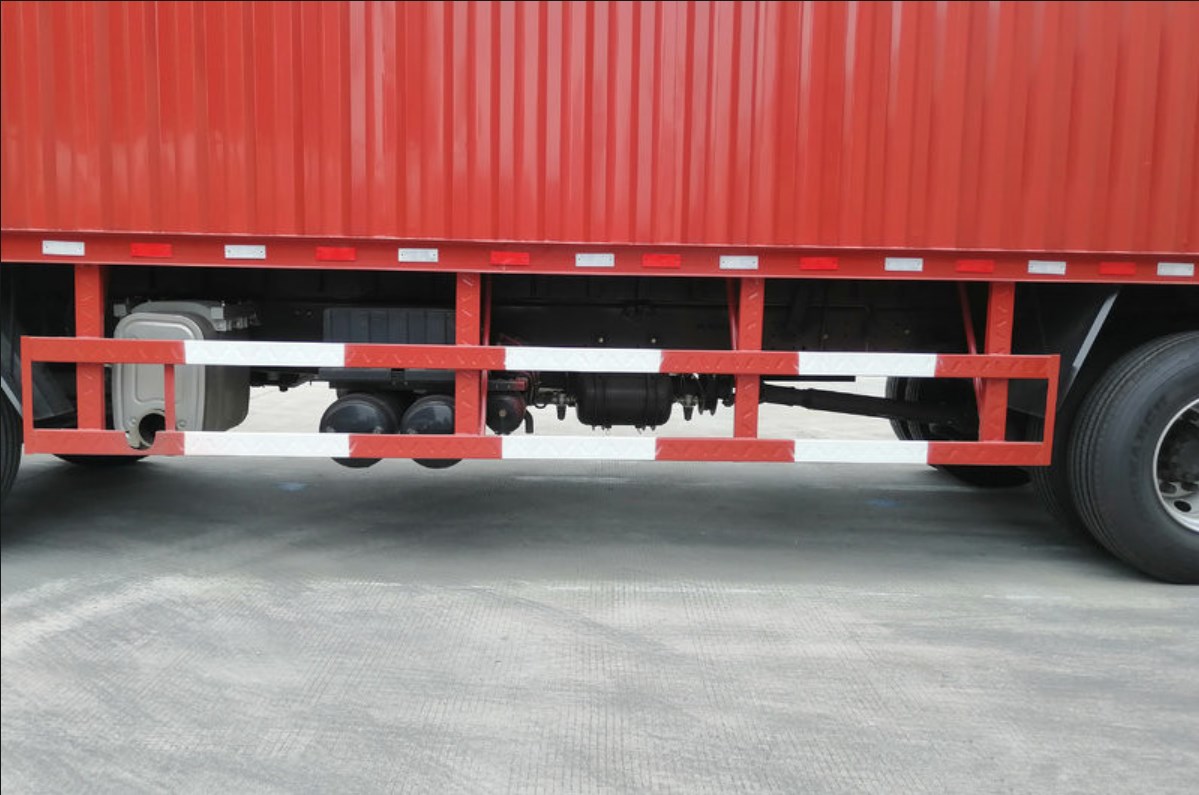

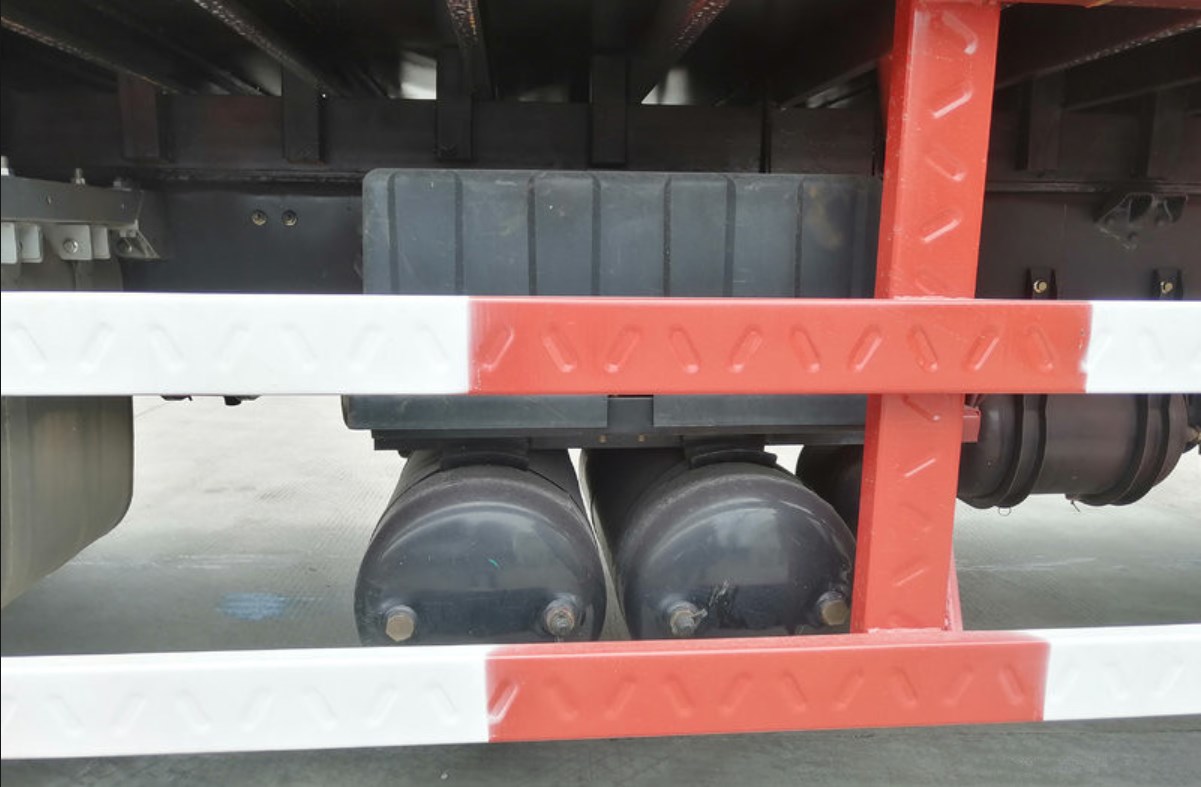

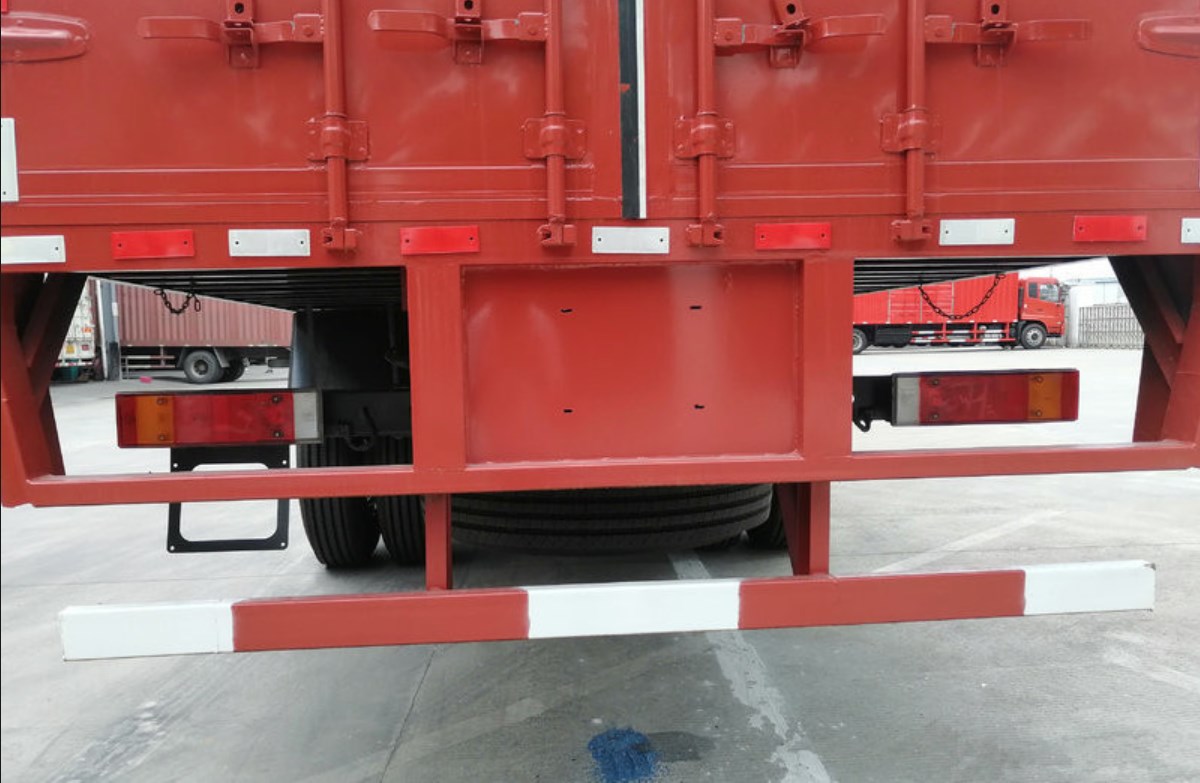

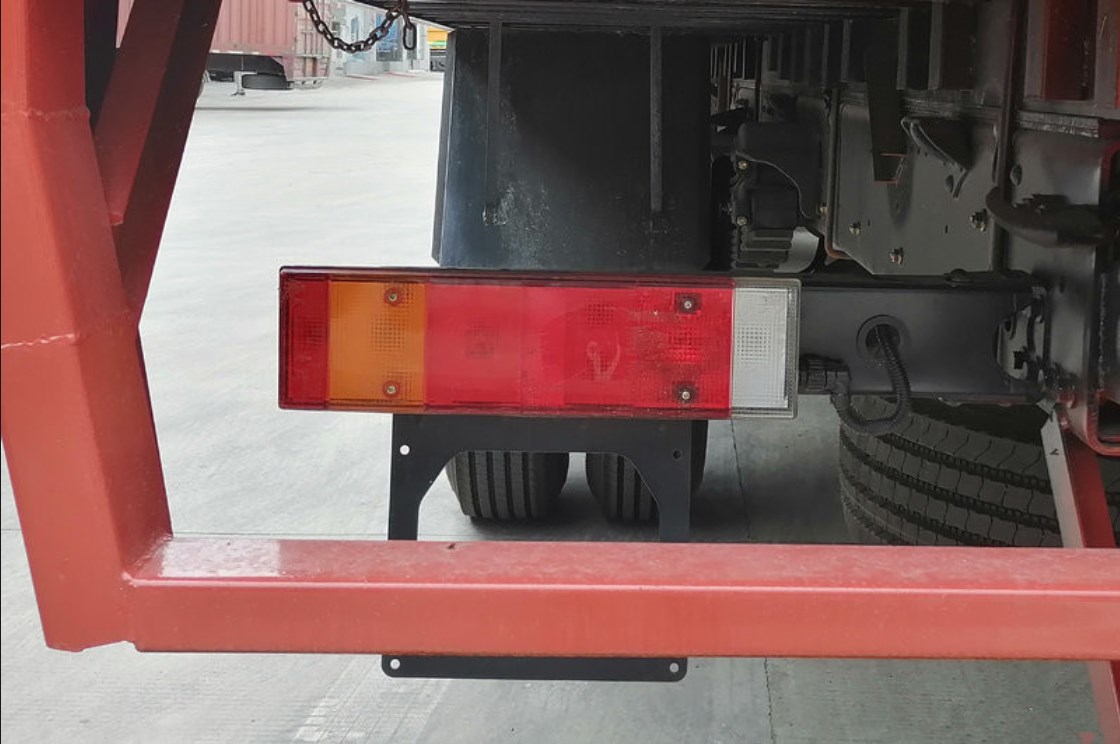

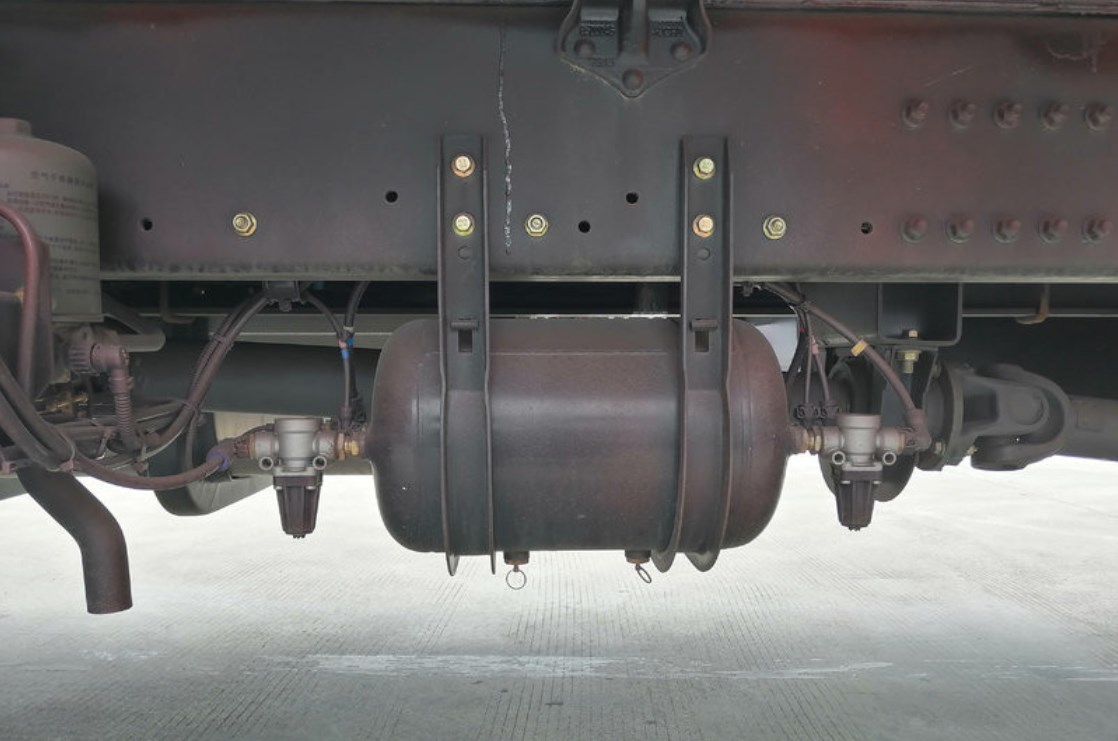

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 8X4
- Wheelbase
- 2050+4000+1350mm
- Box length level
- 8.6 meters
- engine
- Dongfeng DDi11E465-60
- Gearbox
- Dongfeng DT1422 OD
- Rear axle speed ratio
- 3.64
- Body length
- 11 meters
- Body width
- 2.55 meters
- Body height
- 3.99 meters
- Front track
- 2010/2010mm
- Rear wheelbase
- 1860/1860mm
- Vehicle weight
- 12.7 tons
- Rated load
- 18.17 tons
- Total mass
- 31 tons
- Maximum speed
- 89KM/h
- Origin
- Hubei Shiyan
- Tonnage level
- heavy duty truck
- Approach angle
- 13 degrees
- Departure angle
- 15 degrees
- Remark
- Standard configuration: hydraulic electric cab flip, rear axle maintenance-free wheel end.
- Front suspension/rear suspension
- 1.48/2.12 meters
- Version
- Comfort version
Engine parameters
- engine model
- Dongfeng DDi11E465-60
- Engine brand
- Dongfeng
- Common name of engine
- Dongfeng DDi
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 10.8L
- Emission Standards
- National VI
- Maximum output power
- 343kW
- Maximum horsepower
- 465 horsepower
- Maximum torque
- 2240N·m
- Maximum torque speed
- 1100-1600RPM
- Rated speed
- 1800RPM
- Engine form
- Thermal EGR+DOC+DPF+SCR
Gearbox parameters
- Gearbox model
- Dongfeng DT1422 OD
- Shifting method
- Manual
- Forward gear
- 14 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- 5T
- Allowable load on front axle
- 6500/6500KG
- Frame size
- 300×80×8mm
- Rear axle description
- 10T(DF400)
- Allowable load on rear axle
- 18000(two-axis group)KG
- Speed ratio
- 3.64
- Number of spring leaves
- 3/3/10
- Tire specifications
- 12R22.5 18PR
- Number of tires
- 12

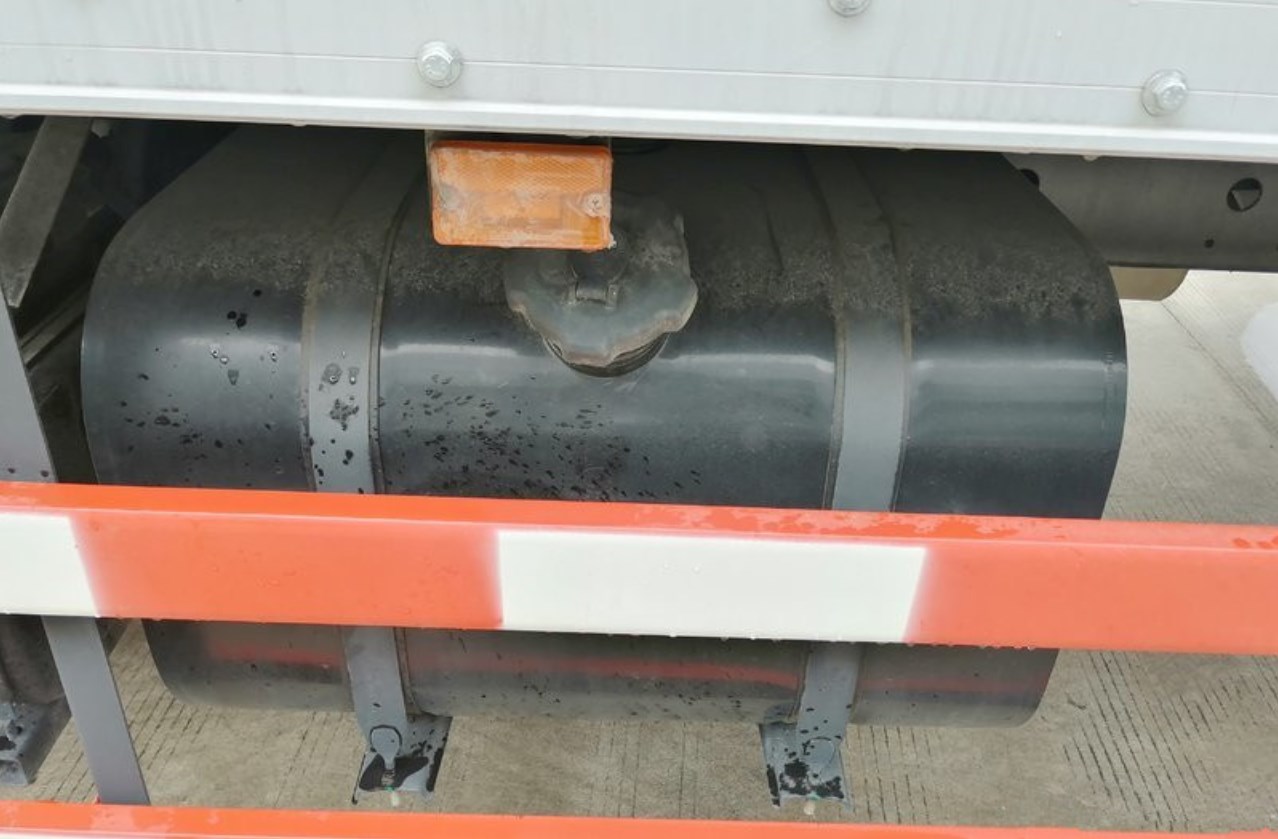

- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 800L
- Container form
- Van type
- Carton length
- 8.6 meters
- Cargo box width
- 2.45 meters
- Cargo box height
- 2.68 meters
