Dongfeng Commercial Vehicle Tianjin KR PLUS Comfort Edition 290 HP 4X2 9.8m Van
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 4X2
- Wheelbase:
- 7150mm
- Box length level:
- 9.8 meters
- engine:
- Dongfeng Cummins D6.7NS6B290
- Gearbox:
- Fast 8JS125TA
- Rear axle speed ratio:
- 3.91
- Body length:
- 12 meters

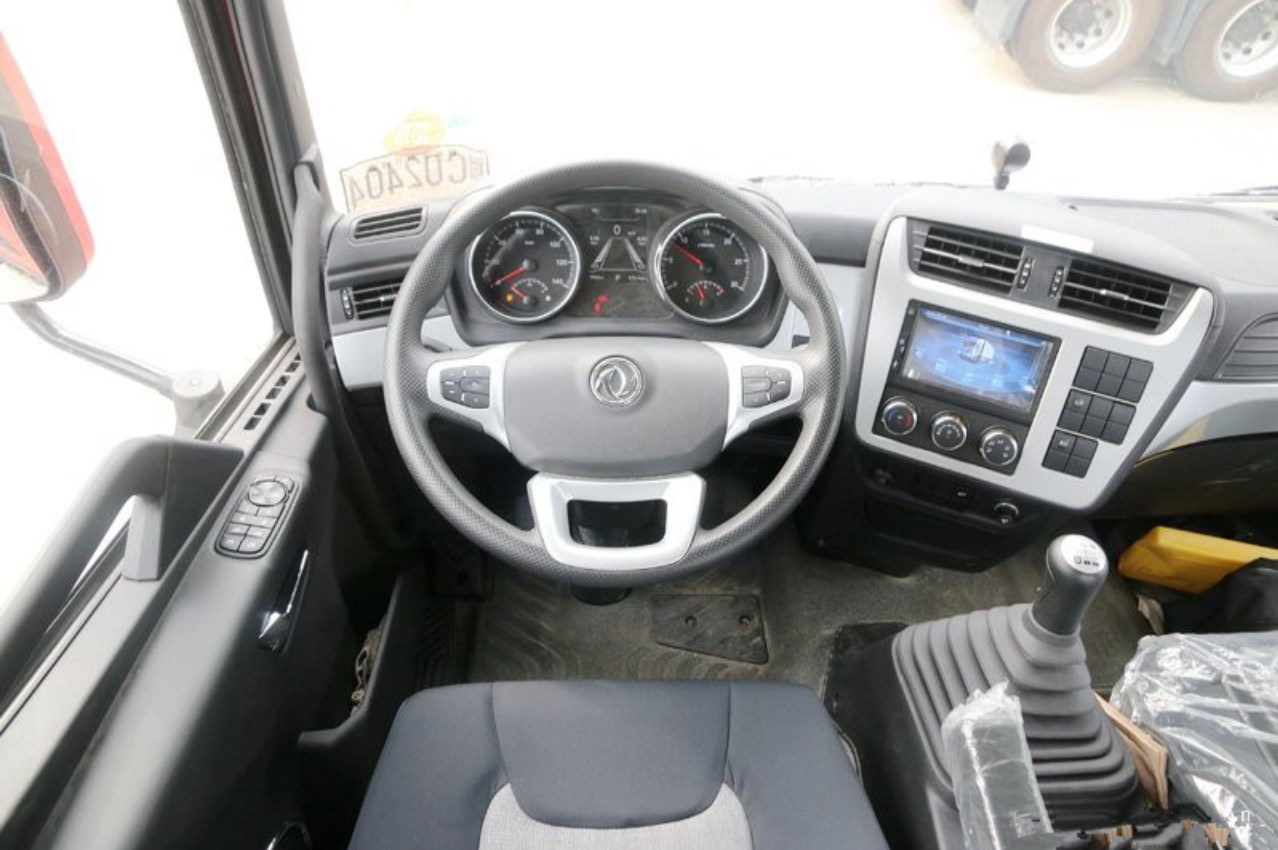

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 4X2
- Wheelbase
- 7150mm
- Box length level
- 9.8 meters
- engine
- Dongfeng Cummins D6.7NS6B290
- Gearbox
- Fast 8JS125TA
- Rear axle speed ratio
- 3.91
- Body length
- 12 meters
- Body width
- 2.55 meters
- Body height
- 3.99 meters
- Front track
- 1934mm
- Rear wheelbase
- 1820mm
- Vehicle weight
- 7.75 tons
- Rated load
- 10.12 tons
- Total mass
- 18 tons
- Maximum speed
- 89KM/h
- Origin
- Hubei Shiyan
- Tonnage level
- medium card
- Approach angle
- 16 degrees
- Departure angle
- 9 degrees
- Front suspension/rear suspension
- 1.4/3 meters
- Version
- Comfort version
Engine parameters
- engine model
- Dongfeng Cummins D6.7NS6B290
- Engine brand
- Dongfeng Cummins
- Common name of engine
- Dongkang 6.7L
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 6.7L
- Emission Standards
- National VI
- Maximum output power
- 213kw
- Maximum horsepower
- 290 HP
- Maximum torque
- 1100N·m
- Maximum torque speed
- 1000-1600RPM
- Rated speed
- 2300RPM
Gearbox parameters
- Gearbox model
- Fast 8JS125TA
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- 4.5T
- Allowable load on front axle
- 6500KG
- Frame size
- 220×75×7mm
- Rear axle description
- 9T
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 3.91
- Number of spring leaves
- 8/10+8,8/-
- Tire specifications
- 275/80R22.5 18PR
- Number of tires
- 6
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
- Container form
- Van type
- Carton length
- 9.8 meters
- Cargo box width
- 2.45 meters
- Cargo box height
- 2.86 meters
