FAW Jiefang J6L Medium Truck Wealth Edition 2.0 260 HP 4X2 9.7m Van
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 4X2
- Wheelbase:
- 7100mm
- Box length level:
- 9.7 meters
- engine:
- Dachai CA6DH1-26E61
- Gearbox:
- FAW Jiefang CA8TAX100FS
- Rear axle speed ratio:
- 4.111
- Body length:
- 11.96 meters

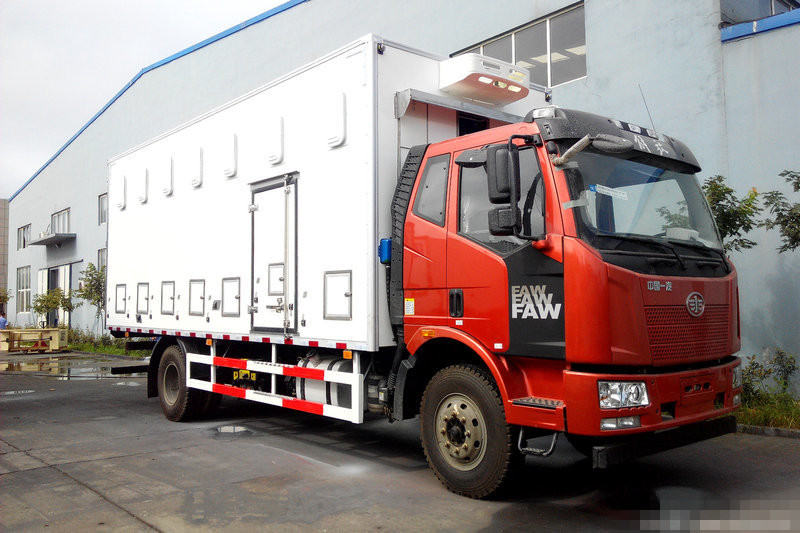

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 4X2
- Wheelbase
- 7100mm
- Box length level
- 9.7 meters
- engine
- Dachai CA6DH1-26E61
- Gearbox
- FAW Jiefang CA8TAX100FS
- Rear axle speed ratio
- 4.111
- Body length
- 11.96 meters
- Body width
- 2.55 meters
- Body height
- 4 meters
- Front track
- 1960mm
- Rear wheelbase
- 1878mm
- Vehicle weight
- 7.905 tons
- Rated load
- 9.9 tons
- Total mass
- 18 tons
- Maximum speed
- 89KM/h
- Origin
- Changchun/Qingdao/Chengdu
- Tonnage level
- medium card
- Approach angle
- 18 degrees
- Departure angle
- 10 degrees
- Front suspension/rear suspension
- 1.4/3.46 meters
- Version
- Wealth Creation Version 2.0
Engine parameters
- engine model
- Dachai CA6DH1-26E61
- Engine brand
- Dachai
- Common name of engine
- Dachai 6 cylinder
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 5.7L
- Emission Standards
- National VI
- Maximum output power
- 192kw
- Maximum horsepower
- 260 HP
- Maximum torque
- 1000N·m
- Maximum torque speed
- 1300-1700RPM
- Rated speed
- 2500RPM
- Engine form
- High voltage common rail+EGR+DOC+DPF+SCR+ASC
- Engine oil change interval
- 100,000 kilometers
Gearbox parameters
- Gearbox model
- FAW Jiefang CA8TAX100FS
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- New F4N-1900 front axle
- Allowable load on front axle
- 6500KG
- Frame size
- 237×75×(6.5+4)mm
- Rear axle description
- ф378 casting bridge
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 4.111
- Number of spring leaves
- 7/7+3
- clutch
- Φ395
- Rear axle oil change interval
- 100,000 kilometers
- Tire specifications
- 275/80R22.5
- Tire type
- 18-layer tubeless (low rolling resistance optional)
- Number of tires
- 6
- Fuel tank material
- steel
- Fuel tank capacity
- 400L
- Container form
- Van type
- Carton length
- 9.7 meters
- Cargo box width
- 2.5 meters
- Cargo box height
- 2.83 meters
