FAW Jiefang J6G Pilot Edition 280 HP 4X2 9.6m Wing Opening Van Truck
Submit purchase requestBasic Information
- type:
- van truck
- Drive form:
- 4X2
- Wheelbase:
- 7100mm
- Box length level:
- 9.6 meters
- engine:
- Oshiba CA6DK2A28E65
- Gearbox:
- FAW Jiefang CA8TAX110FS1
- Rear axle speed ratio:
- 4.1
- Body length:
- 11.99 meters

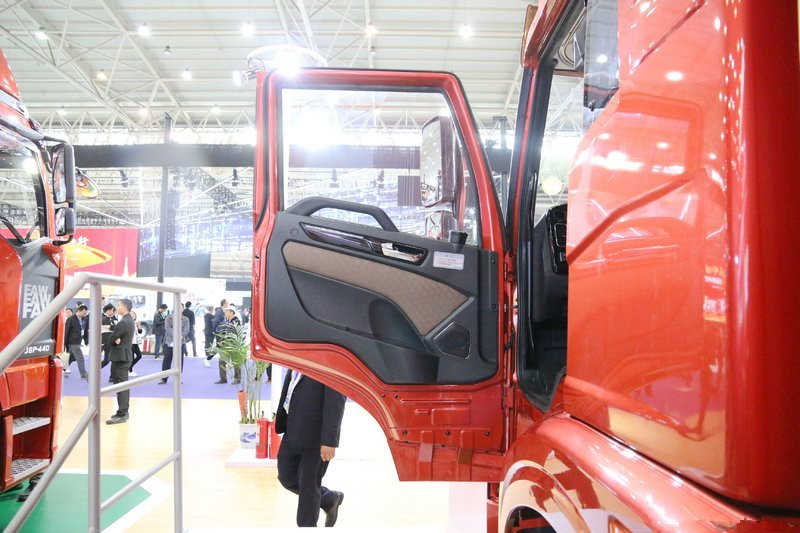

Truck Picture
Truck Configuration
Basic Information
- type
- van truck
- Drive form
- 4X2
- Wheelbase
- 7100mm
- Box length level
- 9.6 meters
- engine
- Oshiba CA6DK2A28E65
- Gearbox
- FAW Jiefang CA8TAX110FS1
- Rear axle speed ratio
- 4.1
- Body length
- 11.99 meters
- Body width
- 2.55 meters
- Body height
- 4 meters
- Front track
- 1960mm
- Rear wheelbase
- 1878mm
- Vehicle weight
- 7.88 tons
- Rated load
- 10.075 tons
- Total mass
- 18 tons
- Maximum speed
- 89KM/h
- Origin
- Qingdao, Shandong
- Tonnage level
- medium card
- Approach angle
- 18 degrees
- Departure angle
- 10 degrees
- Remark
- Optional: speed ratio 3.727
- Front suspension/rear suspension
- 1.4/3.49 meters
- Version
- Pilot version
Engine parameters
- engine model
- Oshiba CA6DK2A28E65
- Engine brand
- Oshiba
- Common name of engine
- Dachai 6 cylinder
- Number of cylinders
- 6 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- series
- Displacement
- 7.751L
- Emission Standards
- National VI
- Maximum output power
- 209kw
- Maximum horsepower
- 280 HP
- Maximum torque
- 1110N·m
- Maximum torque speed
- 1300-1500RPM
- Rated speed
- 2100RPM
- Engine form
- DOC+DPF+HI+SCR
Gearbox parameters
- Gearbox model
- FAW Jiefang CA8TAX110FS1
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 2
Chassis parameters
- Front axle description
- New F4N-1900 front axle
- Allowable load on front axle
- 6500KG
- Frame size
- 237×75×(6.5+4)mm
- Rear axle description
- Axle ф435 stamping and welding bridge
- Allowable load on rear axle
- 11500KG
- Speed ratio
- 4.1
- Number of spring leaves
- 10/12+9
- clutch
- F395
- Tire specifications
- 275/80R22.5 18PR
- Number of tires
- 6
- Fuel tank material
- Aluminum alloy
- Fuel tank capacity
- 600L
- Container form
- wingspan
- Carton length
- 9.6 meters
- Cargo box width
- 2.46 meters
- Cargo box height
- 2.83 meters
