SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
Car series home pageVehicle information
SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
Submit purchase requestBasic Information
  • type:
  • van truck
  • Drive form:
  • 4X2
  • Wheelbase:
  • 7100mm
  • Box length level:
  • 9.6 meters
  • engine:
  • Sinotruk MC07.29-60
  • Gearbox:
  • SINOTRUK HW13709XSTCL
  • Rear axle speed ratio:
  • 4.11
  • Body length:
  • 12 meters

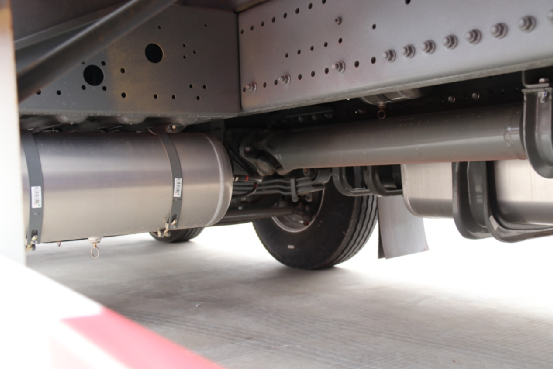

Truck Picture
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
  • SINOTRUK HOWO TX 290 HP 4X2 9.6m box truck
Truck Configuration
Basic Information
  • type
  • van truck
  • Drive form
  • 4X2
  • Wheelbase
  • 7100mm
  • Box length level
  • 9.6 meters
  • engine
  • Sinotruk MC07.29-60
  • Gearbox
  • SINOTRUK HW13709XSTCL
  • Rear axle speed ratio
  • 4.11
  • Body length
  • 12 meters
  • Body width
  • 2.55 meters
  • Body height
  • 3.98 meters
  • Front track
  • 2035mm
  • Rear wheelbase
  • 1860mm
  • Vehicle weight
  • 9.2 tons
  • Rated load
  • 9.47 tons
  • Total mass
  • 18 tons
  • Maximum speed
  • 101KM/h
  • Origin
  • Shandong Jinan
  • Tonnage level
  • heavy duty truck
  • Approach angle
  • 19 degrees
  • Departure angle
  • 10 degrees
  • Market segments
  • LTL shipping
  • Front suspension/rear suspension
  • 1.43/2.97 meters
Engine parameters
  • engine model
  • Sinotruk MC07.29-60
  • Engine brand
  • SINOTRUK
  • Common name of engine
  • SINOTRUK
  • Number of cylinders
  • 6 cylinder
  • Fuel type
  • diesel fuel
  • Cylinder arrangement
  • inline
  • Displacement
  • 6.87L
  • Emission Standards
  • National VI
  • Maximum output power
  • 210kw
  • Maximum horsepower
  • 290 HP
  • Maximum torque
  • 1150N·m
  • Maximum torque speed
  • 1200-1800RPM
  • Rated speed
  • 2200RPM
  • Engine form
  • In-line six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail
Gearbox parameters
  • Gearbox model
  • SINOTRUK HW13709XSTCL
  • Shifting method
  • Manual
  • Forward gear
  • 9 gears
  • Number of reverse gears
  • 1
Chassis parameters
  • Allowable load on front axle
  • 6500KG
  • Allowable load on rear axle
  • 11500kg
  • Speed ​​ratio
  • 4.11
  • Number of spring leaves
  • 11/9+8
  • Tire specifications
  • 275/80R22.5 18PR
  • Number of tires
  • 6
  • Container form
  • Van type
  • Carton length
  • 9.6 meters
  • Cargo box width
  • 2.5 meters
  • Cargo box height
  • 2.9 meters
