JAC Shuailing S6 160 HP 4.18m single-row grille-type light truck
Submit purchase requestBasic Information
- Drive form:
- 4X2
- Wheelbase:
- 3365mm
- Box length level:
- 4.2 meters
- engine:
- Anhui Cummins HFC4DE3-2E9
- Gearbox:
- JAC 8th gear
- Rear axle speed ratio:
- 4.33
- Body length:
- 5.995 meters
- Body width:
- 2.25 meters
Truck Picture
Truck Configuration
Basic Information
- Drive form
- 4X2
- Wheelbase
- 3365mm
- Box length level
- 4.2 meters
- engine
- Anhui Cummins HFC4DE3-2E9
- Gearbox
- JAC 8th gear
- Rear axle speed ratio
- 4.33
- Body length
- 5.995 meters
- Body width
- 2.25 meters
- Body height
- 3.45 meters
- Front track
- 1595mm
- Rear wheelbase
- 1620mm
- Vehicle weight
- 2.72 tons
- Rated load
- 1.58 tons
- Total mass
- 4.495 tons
- Maximum speed
- 110km/h
- Origin
- Hefei, Anhui
- Tonnage level
- light truck
- Approach angle
- 19 degrees
- Departure angle
- 15 degrees

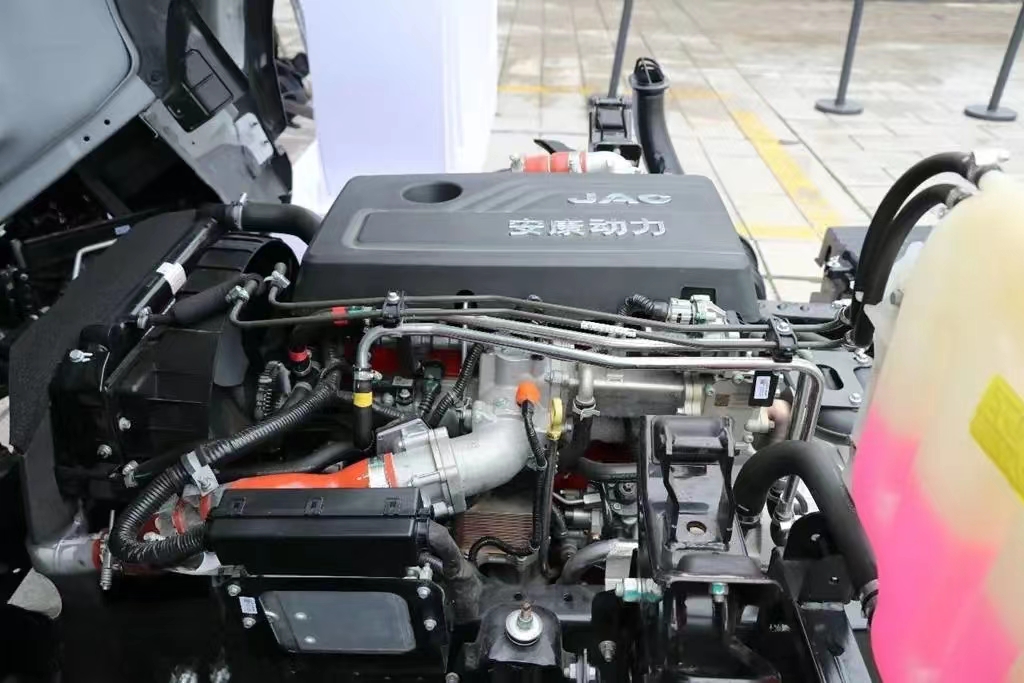

Engine parameters
- engine model
- Anhui Cummins HFC4DE3-2E9
- Engine brand
- Anhui Cummins
- Common name of engine
- Ankang 2.5L
- Number of cylinders
- 4
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 2.499L
- Emission Standards
- Euro six
- Maximum output power
- 117kW
- Maximum horsepower
- 160 HP
Gearbox parameters
- Gearbox model
- JAC 8th gear
- Shifting method
- Manual
- Forward gear
- 8 gears
- Number of reverse gears
- 1
Chassis parameters
- Allowable load on front axle
- 1850KG
- Frame size
- 180×65×4.5mm
- Allowable load on rear axle
- 2645KG
- Speed ratio
- 4.33
- Number of spring leaves
- 4/4+2
- Frame form
- dovetail beam
- Rear axle oil change interval
- 60,000 kilometers
- Maintenance-free wheel end
- Optional
- Tire specifications
- 7.00R16LT 8PR
- Number of tires
- 6
