SINOTRUK HOWO 160 HP 3.85m AT light truck
Submit purchase requestBasic Information
- type:
- Truck
- Drive form:
- 4X2
- Wheelbase:
- 3280mm
- Box length level:
- 3.8 meters
- engine:
- Weichai WP2.5NQ160E61
- Gearbox:
- Shengrui SR-8AT500R
- Rear axle speed ratio:
- 4.333
- Body length:
- 5.995 meters

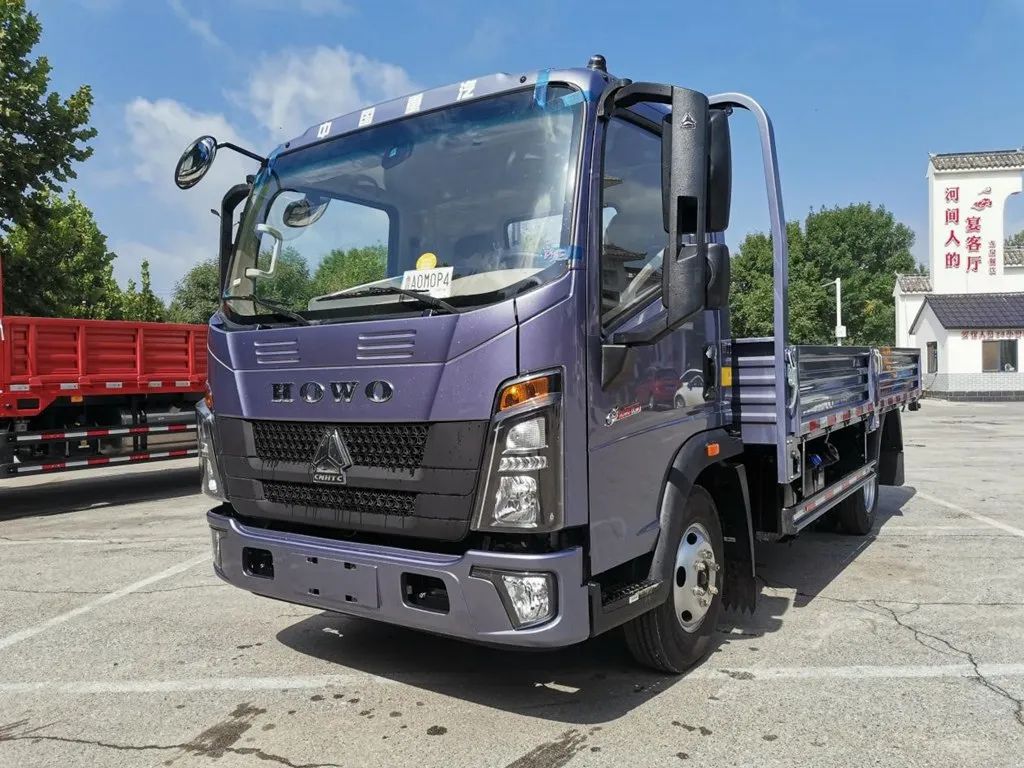

Truck Picture
Truck Configuration
Basic Information
- type
- Truck
- Drive form
- 4X2
- Wheelbase
- 3280mm
- Box length level
- 3.8 meters
- engine
- Weichai WP2.5NQ160E61
- Gearbox
- Shengrui SR-8AT500R
- Rear axle speed ratio
- 4.333
- Body length
- 5.995 meters
- Body width
- 2.2 meters
- Body height
- 2.5 meters
- Front track
- 1610mm
- Rear wheelbase
- 1595mm
- Vehicle weight
- 2.565 tons
- Rated load
- 1.8 tons
- Total mass
- 4.495 tons
- Maximum speed
- 95km/h
- Origin
- Zhangqiu, Shandong
- Tonnage level
- light truck
- Approach angle
- 18 degrees
- Departure angle
- 17 degrees
- Front suspension/rear suspension
- 1.16/1.555 meters
Engine parameters
- engine model
- Weichai WP2.5NQ160E61
- Engine brand
- Weichai
- Common name of engine
- Weichai WP2.5N
- Number of cylinders
- 4 cylinder
- Fuel type
- diesel fuel
- Cylinder arrangement
- inline
- Displacement
- 2.49L
- Emission Standards
- National VI
- Maximum output power
- 118kW
- Maximum horsepower
- 160 HP
- Maximum torque
- 450N·m
- Maximum torque speed
- 1400-2200RPM
- Rated speed
- 2900RPM
- Engine form
- High voltage common rail
- Engine oil change interval
- 50,000 kilometers
Gearbox parameters
- Gearbox model
- Shengrui SR-8AT500R
- Shifting method
- AT automatic
- Forward gear
- 8 gears
- Number of reverse gears
- 1
Chassis parameters
- Allowable load on front axle
- 1790KG
- Allowable load on rear axle
- 2705KG
- Speed ratio
- 4.333
- Number of spring leaves
- 3/5+3
- Tire specifications
- 7.00R16LT 10PR
- Number of tires
- 6
